Current Mode PWM Controllers LM5035AMHX-1/NOPB
Texas Instruments

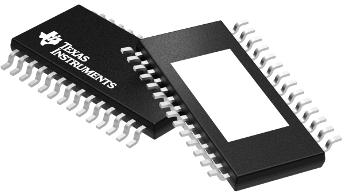

LM5035AMHX-1/NOPB
--
Power Management
Current Mode PWM Controllers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Voltage Mode PWM Controller |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Topology | Half-Bridge |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 28 |
| Automotive | No |
| Lead Shape | Gull-wing |
| On/Off Pin | No |
| PCB changed | 28 |
| Part Status | Obsolete |
| Package Width | 4.5(Max) |
| Control Method | Voltage |
| Fall Time (ns) | 13 |
| Package Height | 1.05(Max) |
| Package Length | 9.8(Max) |
| Rise Time (ns) | 15 |
| Synchronous Pin | Yes |
| Supplier Package | HTSSOP EP |
| Adjustable Output | Yes |
| Output Current (mA) | 2000 |
| Number of PWM Outputs | 1 |
| Standard Package Name | SOP |
| Maximum Duty Cycle (%) | 0(Min) |
| Switching Frequency (kHz) | 2000 |
| UVLO Turn-On Threshold (V) | 1.25 |
| Maximum Supply Current (mA) | 4(Typ) |
| Operating Supply Voltage (V) | 8 to 15 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 15 |
| Minimum Operating Supply Voltage (V) | 8 |
| Description |
