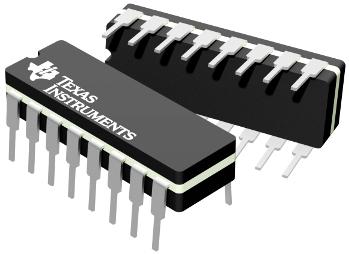

Current Mode PWM Controllers 5962-9203103QEA
Texas Instruments
5962-9203103QEA
--
Power Management
Current Mode PWM Controllers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Voltage Mode PWM Controller |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| Topology | Push-Pull|Full-Bridge|Half-Bridge |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Through Hole |
| On/Off Pin | No |
| PCB changed | 16 |
| Part Status | Active |
| Package Width | 7.62(Max) |
| Control Method | Voltage Mode PWM Controller |
| Fall Time (ns) | 25 |
| Package Height | 3.56(Max) |
| Package Length | 21.34(Max) |
| Rise Time (ns) | 25 |
| Synchronous Pin | No |
| Supplier Package | CDIP |
| Adjustable Output | No |
| Output Current (mA) | 500(Max) |
| Number of PWM Outputs | 2 |
| Standard Package Name | DIP |
| Maximum Duty Cycle (%) | 50 |
| Switching Frequency (kHz) | 550 |
| Maximum Supply Current (mA) | 32 |
| Maximum Power Dissipation (mW) | 1000 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | 22 |
| Description |
