Current Limit Switches TPS2224ADB
Texas Instruments

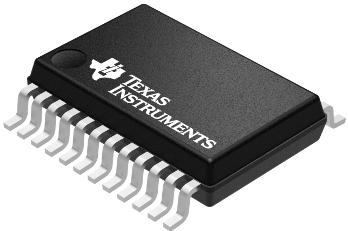

TPS2224ADB
--
Power Management
Current Limit Switches
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 24 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 24 |
| Part Status | Active |
| Package Width | 5.6(Max) |
| Package Height | 2(Max) - 0.05(Min) |
| Package Length | 8.5(Max) |
| Number of Inputs | 1 |
| Supplier Package | SSOP |
| Number of Outputs | 1 |
| Standard Package Name | SOP |
| Maximum Input Voltage (V) | 13.5 |
| Minimum Input Voltage (V) | 7 |
| Maximum Output Current (A) | 1 |
| Switch On Resistance (mOhm) | 2000 |
| Maximum Power Dissipation (mW) | 1095 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
