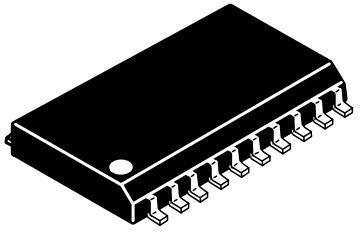

Counter Shift Registers NLV74HC390ADR2G
onsemi
NLV74HC390ADR2G
--
Standard and Specialty Logic
Counter Shift Registers
Specification
| Product Attribute | Attribute Value |
| PPAP | Yes |
| Type | Decade |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 20 |
| Automotive | Yes |
| Lead Shape | Gull-wing |
| Reset Type | Asynchronous |
| PCB changed | 20 |
| Part Status | Active |
| Logic Family | HC |
| Package Width | 7.6(Max) |
| Direction Type | Uni-Directional |
| Logic Function | Counter/Divider |
| Operation Mode | UP Counter |
| Package Height | 2.4(Max) |
| Package Length | 12.95(Max) |
| Triggering Type | Negative-Edge |
| Number of Stages | 4 |
| Supplier Package | SOIC W |
| Process Technology | CMOS |
| Parallel Enable Input | No |
| Standard Package Name | SOP |
| Terminal Count Output | No |
| Number of Element Inputs | 2 |
| Number of Element Outputs | 4 |
| Supplier Temperature Grade | Automotive |
| Number of Elements per Chip | 2 |
| Number of Count Input Enables | 0 |
| Maximum Quiescent Current (mA) | 0.004 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Absolute Propagation Delay Time (ns) | 300 |
| Maximum Operating Supply Voltage (V) | 6 |
| Minimum Operating Supply Voltage (V) | 2 |
| Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
| Propagation Delay Test Condition (pF) | 50 |
| Number of Selection Inputs per Element | 0 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 200@2V|160@3V|58@4.5V|49@6V |
| Description |
