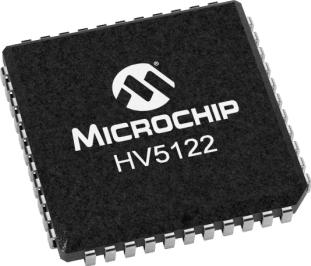

Counter Shift Registers HV5122PJ-G
Microchip Technology
HV5122PJ-G
--
Standard and Specialty Logic
Counter Shift Registers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 44 |
| Automotive | No |
| Lead Shape | J-Lead |
| Output Type | Open Drain |
| PCB changed | 44 |
| Part Status | Active |
| Package Width | 16.59 |
| Direction Type | Uni-Directional |
| Logic Function | Shift Register/Latch/Driver |
| Operation Mode | Serial to Parallel |
| Package Height | 3.68(Min) |
| Package Length | 16.59 |
| Triggering Type | Positive-Edge |
| Number of Stages | 32 |
| Supplier Package | PLCC |
| Process Technology | CMOS |
| Parallel Enable Input | No |
| Standard Package Name | LCC |
| Terminal Count Output | No |
| Number of Element Inputs | 1 |
| Number of Element Outputs | 32 |
| Number of Elements per Chip | 1 |
| Number of Count Input Enables | 0 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 13.2 |
| Minimum Operating Supply Voltage (V) | 10.8 |
| Number of Selection Inputs per Element | 0 |
| Description |
