Counter Shift Registers 74HCT595BQ,115
NXP

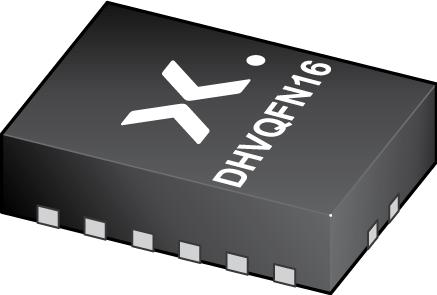

74HCT595BQ,115
--
Standard and Specialty Logic
Counter Shift Registers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Automotive | No |
| Reset Type | Asynchronous |
| Output Type | 3-State |
| PCB changed | 16 |
| Part Status | Active |
| Logic Family | HCT |
| Package Width | 2.6(Max) |
| Direction Type | Uni-Directional |
| Logic Function | Shift Register |
| Operation Mode | Serial to Serial/Parallel |
| Package Height | 0.95(Max) |
| Package Length | 3.6(Max) |
| Triggering Type | Positive-Edge |
| Number of Stages | 8 |
| Supplier Package | DHVQFN EP |
| Process Technology | CMOS |
| Parallel Enable Input | No |
| Terminal Count Output | No |
| Number of Element Inputs | 1 |
| Number of Element Outputs | 9 |
| Number of Elements per Chip | 1 |
| Number of Count Input Enables | 0 |
| Maximum Quiescent Current (mA) | 0.16 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 63 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Propagation Delay Test Condition (pF) | 50 |
| Number of Selection Inputs per Element | 0 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 42@4.5V to 5.5V |
