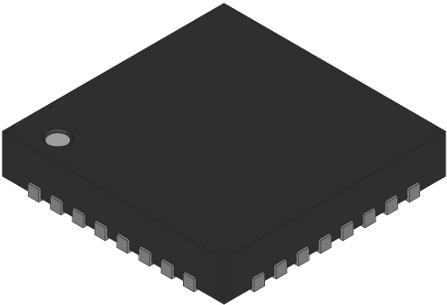

Controlled Oscillators HMC510LP5
ADI
HMC510LP5
--
Oscillators and Crystals
Controlled Oscillators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| SVHC | Yes |
| Type | Voltage Controlled Oscillator (VCO) |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | 3A001a.11.b. |
| Packaging | Tape and Reel |
| Pin Count | 32 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 32 |
| Part Status | Active |
| Package Width | 5.1(Max) |
| Package Height | 0.95(Max) |
| Package Length | 5.1(Max) |
| Supplier Package | QFN EP |
| Tuning Voltage (V) | 2 to 13 |
| Frequency Range (MHz) | 4225 to 4775|8450 to 9550 |
| Lower Frequency (MHz) | 4225|8450 |
| Standard Package Name | QFN |
| Upper Frequency (MHz) | 4775|9550 |
| Output Frequency (MHz) | 4225 to 4775|8450 to 9550 |
| SVHC Exceeds Threshold | Yes |
| Maximum Supply Current (mA) | 360 |
| Typical Phase Noise (dBc/Hz) | -116@100KHz |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Description |
