Complex Programmable Logic Devices - CPLDs ATF1502ASV-15JU44
Microchip Technology

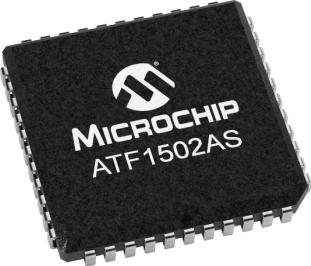

ATF1502ASV-15JU44
--
Programmable Devices
Complex Programmable Logic Devices - CPLDs
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Data Gate | No |
| ECCN (US) | 3A991.a.2 |
| Packaging | Tube |
| Pin Count | 44 |
| Tradename | ATF1500 |
| Automotive | No |
| Lead Shape | J-Lead |
| Family Name | ATF1500 |
| PCB changed | 44 |
| Part Status | Active |
| Speed Grade | 15 |
| Package Width | 16.7(Max) |
| Product Terms | 40 |
| Package Height | 3.48(Max) |
| Package Length | 16.7(Max) |
| Programmability | Yes |
| Supplier Package | PLCC |
| Device System Gates | 750 |
| Program Memory Type | EEPROM |
| Number of Flip Flops | 32 |
| Number of Macro Cells | 32 |
| Standard Package Name | LCC |
| Number of Global Clocks | 3 |
| In-System Programmability | Yes |
| Reprogrammability Support | Yes |
| Supplier Temperature Grade | Industrial |
| Maximum Number of User I/Os | 32 |
| Number of Logic Blocks/Elements | 2 |
| Individual Output Enable Control | Yes |
| Maximum Internal Frequency (MHz) | 100 |
| Maximum Clock to Output Delay (ns) | 8 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 15 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Description |
