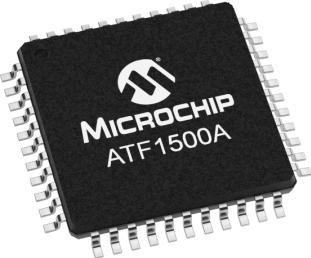

Complex Programmable Logic Devices - CPLDs ATF1500A-10AU
Microchip Technology
ATF1500A-10AU
--
Programmable Devices
Complex Programmable Logic Devices - CPLDs
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Data Gate | No |
| ECCN (US) | EAR99 |
| Packaging | Tray |
| Pin Count | 44 |
| Tradename | ATF1500 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Family Name | ATF1500 |
| PCB changed | 44 |
| Part Status | NRND |
| Speed Grade | 10 |
| Package Width | 10 |
| Product Terms | 40 |
| Package Height | 1 |
| Package Length | 10 |
| Programmability | Yes |
| Supplier Package | TQFP |
| Device System Gates | 1000 |
| Program Memory Type | Flash |
| Number of Flip Flops | 32 |
| Number of Macro Cells | 32 |
| Standard Package Name | QFP |
| In-System Programmability | No |
| Reprogrammability Support | Yes |
| Supplier Temperature Grade | Industrial |
| Maximum Number of User I/Os | 32 |
| Individual Output Enable Control | Yes |
| Maximum Internal Frequency (MHz) | 125 |
| Maximum Clock to Output Delay (ns) | 10 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 10 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Description |
