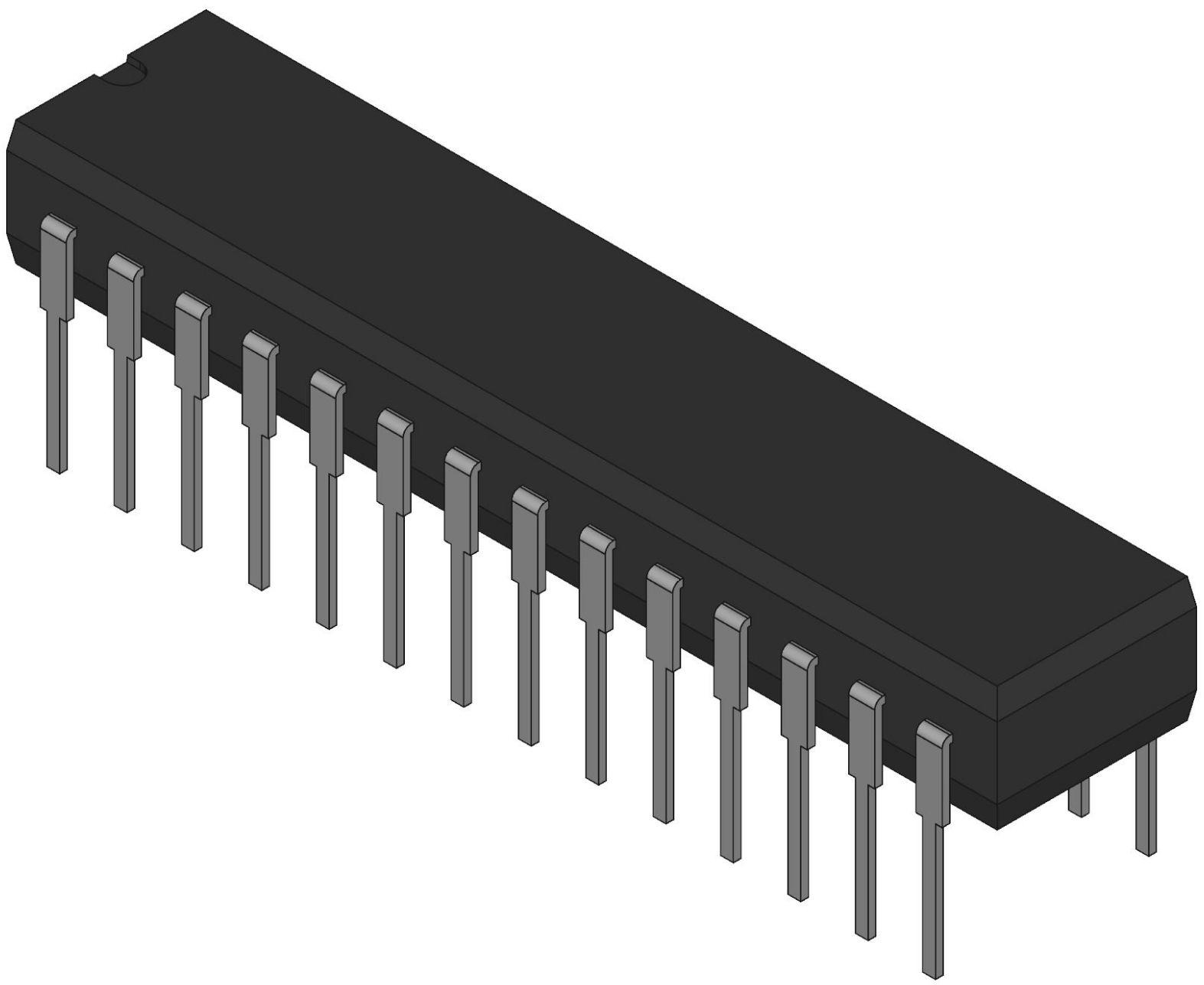

Complex Programmable Logic Devices - CPLDs 5962-9061102XX
Cypress
5962-9061102XX
--
Programmable Devices
Complex Programmable Logic Devices - CPLDs
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| Data Gate | No |
| Pin Count | 28 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 28 |
| Part Status | Obsolete |
| Speed Grade | 25 |
| Package Width | 7.87(Max) |
| Package Height | 3.56(Max) |
| Package Length | 37.72(Max) |
| Programmability | Yes |
| Supplier Package | Windowed CDIP |
| Process Technology | 0.8um |
| Program Memory Type | EPROM |
| Number of Macro Cells | 32 |
| Standard Package Name | DIP |
| In-System Programmability | No |
| Reprogrammability Support | No |
| Supplier Temperature Grade | Military |
| Maximum Number of User I/Os | 16 |
| Maximum Operating Current (mA) | 220 |
| Number of Logic Blocks/Elements | 1 |
| Individual Output Enable Control | No |
| Maximum Internal Frequency (MHz) | 62.5 |
| Number of Inter Dielectric Layers | 2 |
| Maximum Clock to Output Delay (ns) | 15 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time (ns) | 25 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Description |
