Comparators TLV3702IPE4
Texas Instruments

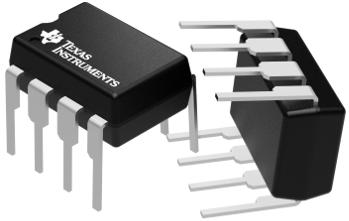

TLV3702IPE4
--
Amplifier
Comparators
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Push-Pull |
| PCB changed | 8 |
| Part Status | Unconfirmed |
| Rail to Rail | Rail to Rail Input |
| Package Width | 6.6(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 10.16(Max) |
| Supplier Package | PDIP |
| Manufacturer Type | Nanopower Comparator |
| Power Supply Type | Single|Dual |
| Typical CMRR (dB) | 88 |
| Typical PSRR (dB) | 105 |
| Standard Package Name | DIP |
| Typical Voltage Gain (dB) | 120 |
| Supplier Temperature Grade | Extended Industrial |
| Typical Response Time (us) | 240 |
| Maximum Supply Current (mA) | 0.0016@15V |
| Number of Channels per Chip | 2 |
| Typical Output Current (mA) | 10(Max) |
| Maximum Power Dissipation (mW) | 1510 |
| Maximum Quiescent Current (mA) | 0.0039(Typ) |
| Maximum Test Temperature (°C) | 125 |
| Minimum Test Temperature (°C) | -40 |
| Maximum Dual Supply Voltage (V) | ±8 |
| Maximum Input Bias Current (uA) | 0.00025@15V |
| Minimum Dual Supply Voltage (V) | ±1.35 |
| Typical Dual Supply Voltage (V) | ±3|±5 |
| Typical Voltage Gain Range (dB) | 110 to 150 |
| Typical Response Time Range (us) | >=150 |
| Maximum Input Offset Voltage (mV) | 5@15V |
| Maximum Single Supply Voltage (V) | 16 |
| Minimum Single Supply Voltage (V) | 2.7 |
| Typical Single Supply Voltage (V) | 3|5|9|12|15 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time (ns) | 240000(Typ) |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | ±8|16 |
| Description |
