Comparators TLC3704IN
Texas Instruments

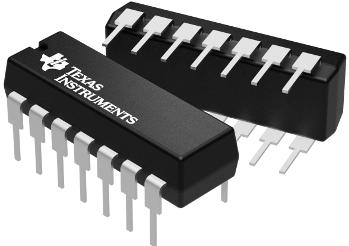

TLC3704IN
--
Amplifier
Comparators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Push-Pull|CMOS |
| PCB changed | 14 |
| Part Status | Active |
| Rail to Rail | No |
| Package Width | 6.6(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 19.69(Max) |
| Supplier Package | PDIP |
| Manufacturer Type | Voltage Comparator |
| Power Supply Type | Single |
| Typical CMRR (dB) | 84 |
| Typical PSRR (dB) | 85 |
| Process Technology | LinCMOS |
| Standard Package Name | DIP |
| Supplier Temperature Grade | Extended Industrial |
| Typical Response Time (us) | 2.7 |
| Number of Channels per Chip | 4 |
| Typical Output Current (mA) | 20(Max) |
| Maximum Power Dissipation (mW) | 1150 |
| Maximum Quiescent Current (mA) | 0.08@5V |
| Maximum Input Bias Current (uA) | 0.000005(Typ)@5V |
| Typical Response Time Range (us) | 0.5 to 5 |
| Maximum Input Offset Voltage (mV) | 5@10V |
| Maximum Single Supply Voltage (V) | 16 |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 5 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 4500(Typ) |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 16 |
| Description |
