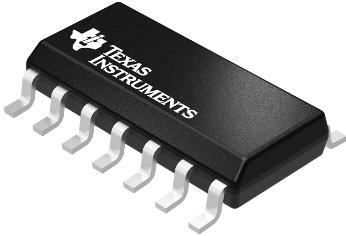

Comparators LMV339MX
Texas Instruments
LMV339MX
--
Amplifier
Comparators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Open Collector |
| PCB changed | 14 |
| Part Status | Unconfirmed |
| Rail to Rail | Rail to Rail Output |
| Package Width | 4(Max) |
| Package Height | 1.5(Max) |
| Package Length | 8.75(Max) |
| Supplier Package | SOIC |
| Manufacturer Type | Low Voltage Comparator |
| Power Supply Type | Single |
| Process Technology | Bipolar |
| Standard Package Name | SOP |
| SVHC Exceeds Threshold | Yes |
| Typical Voltage Gain (dB) | 93.98 |
| Supplier Temperature Grade | Industrial |
| Maximum Supply Current (mA) | 0.3@5V |
| Number of Channels per Chip | 4 |
| Typical Output Current (mA) | 84@5V |
| Maximum Input Bias Current (uA) | 0.25@5V |
| Typical Voltage Gain Range (dB) | 90 to 110 |
| Maximum Input Offset Voltage (mV) | 7@5V |
| Maximum Single Supply Voltage (V) | 5 |
| Minimum Single Supply Voltage (V) | 2.7 |
| Typical Single Supply Voltage (V) | 3 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 600(Typ) |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5 |
| Description |
