Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Open Collector |
| PCB changed | 14 |
| Part Status | Active |
| Rail to Rail | No |
| Package Width | 4.4 |
| Package Height | 1 |
| Package Length | 5 |

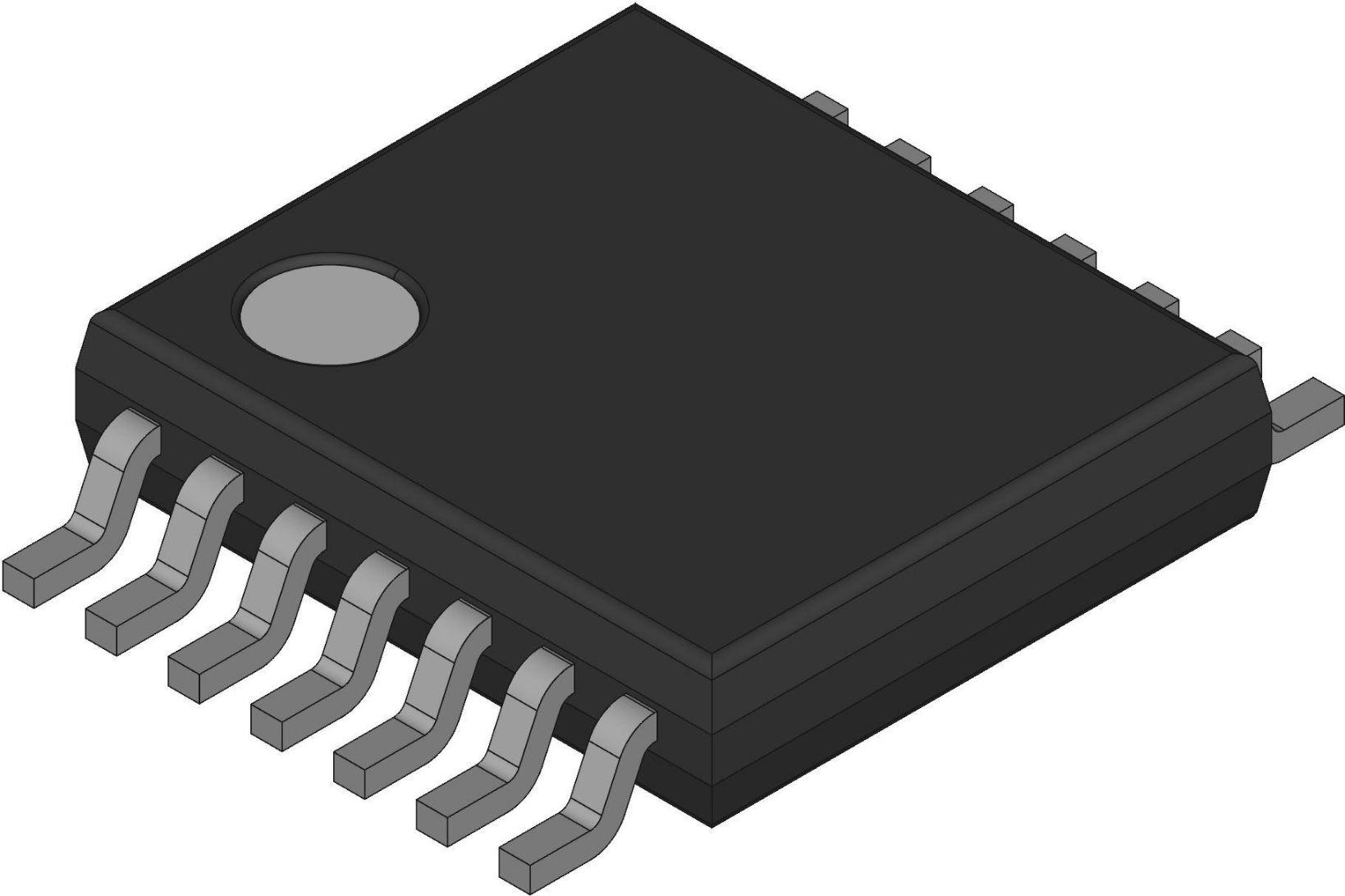

| Supplier Package | TSSOP |
| Manufacturer Type | Voltage Comparator |
| Power Supply Type | Dual|Single |
| Process Technology | Bipolar |
| Standard Package Name | SOP |
| Typical Voltage Gain (dB) | 106.02 |
| Typical Response Time (us) | 1.3 |
| Maximum Supply Current (mA) | 2@5V |
| Number of Channels per Chip | 4 |
| Typical Output Current (mA) | 16@5V |
| Maximum Quiescent Current (mA) | 2@5V |
| Maximum Test Temperature (°C) | 105 |
| Minimum Test Temperature (°C) | -40 |
| Maximum Dual Supply Voltage (V) | ±16 |
| Maximum Input Bias Current (uA) | 0.1@5V |
| Minimum Dual Supply Voltage (V) | ±1 |
| Typical Dual Supply Voltage (V) | ±15|±12|±9|±5|±3 |
| Typical Voltage Gain Range (dB) | 90 to 110 |
| Typical Response Time Range (us) | 0.5 to 5 |
| Maximum Input Offset Voltage (mV) | 2@30V |
| Maximum Single Supply Voltage (V) | 32 |
| Minimum Single Supply Voltage (V) | 2 |
| Typical Single Supply Voltage (V) | 28|24|18|15|12|9|5|3 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | ±16|32 |
| Description |
