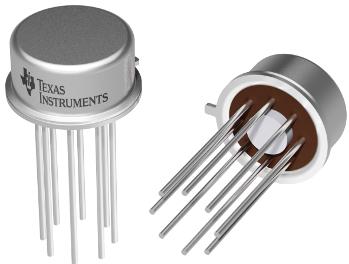

Comparators LM193H
Texas Instruments
LM193H
--
Amplifier
Comparators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Diameter | 9.4(Max) |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Pin Count | 8 |
| Automotive | No |
| Output Type | Open Collector |
| PCB changed | 8 |
| Part Status | Active |
| Rail to Rail | Rail to Rail Output |
| Package Height | 4.7(Max) |
| Supplier Package | TO-99 |
| Manufacturer Type | Voltage Comparator |
| Power Supply Type | Single|Dual |
| SVHC Exceeds Threshold | Yes |
| Typical Voltage Gain (dB) | 106.02 |
| Supplier Temperature Grade | Military |
| Typical Response Time (us) | 1.3 |
| Number of Channels per Chip | 2 |
| Typical Output Current (mA) | 16@5V |
| Maximum Power Dissipation (mW) | 660 |
| Maximum Quiescent Current (mA) | 1@5V |
| Maximum Test Temperature (°C) | 125 |
| Minimum Test Temperature (°C) | -55 |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Bias Current (uA) | 0.1@5V |
| Minimum Dual Supply Voltage (V) | ±1 |
| Typical Dual Supply Voltage (V) | ±3|±5|±9|±12|±15 |
| Typical Voltage Gain Range (dB) | 90 to 110 |
| Typical Response Time Range (us) | 0.5 to 5 |
| Maximum Input Offset Voltage (mV) | 5@30V |
| Maximum Single Supply Voltage (V) | 36 |
| Minimum Single Supply Voltage (V) | 2 |
| Typical Single Supply Voltage (V) | 3|5|9|12|15|18|24|28 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time (ns) | 700(Typ) |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | ±18|36 |
| Description |
