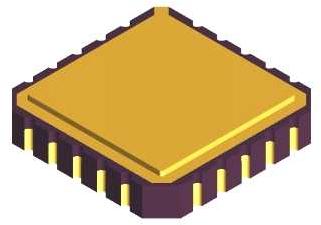

Comparators LM111FKB
Texas Instruments
LM111FKB
--
Amplifier
Comparators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | No Lead |
| Output Type | Open Collector |
| PCB changed | 20 |
| Part Status | Active |
| Rail to Rail | No |
| Package Width | 9.09(Max) |
| Package Height | 2.03(Max) |
| Package Length | 9.09(Max) |
| Supplier Package | CLLCC |
| Manufacturer Type | Voltage Comparator |
| Power Supply Type | Dual|Single |
| Process Technology | Bipolar |
| Standard Package Name | LLCC |
| Typical Voltage Gain (dB) | 106.02 |
| Supplier Temperature Grade | Military |
| Typical Response Time (us) | 0.165 |
| Number of Channels per Chip | 1 |
| Maximum Quiescent Current (mA) | 6@15V/-5@-15V |
| Maximum Test Temperature (°C) | 125 |
| Minimum Test Temperature (°C) | -55 |
| Maximum Dual Supply Voltage (V) | ±15 |
| Maximum Input Bias Current (uA) | 0.1@±15V |
| Minimum Dual Supply Voltage (V) | ±1.75 |
| Typical Dual Supply Voltage (V) | ±12|±9|±5|±3 |
| Typical Voltage Gain Range (dB) | 90 to 110 |
| Typical Response Time Range (us) | 0.05 to 0.5 |
| Maximum Input Offset Voltage (mV) | 3@±15V |
| Maximum Single Supply Voltage (V) | 30 |
| Minimum Single Supply Voltage (V) | 3.5 |
| Typical Single Supply Voltage (V) | 18|24|12|15|28|5|9 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time (ns) | 200(Typ) |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | ±15|30 |
| Description |
