Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Diameter | 9.4(Max) |
| Mounting | Through Hole |
| ECCN (US) | 3A001.a.2.c |
| Pin Count | 8 |
| Automotive | No |
| PCB changed | 8 |
| Part Status | Obsolete |
| Rail to Rail | No |
| Package Height | 4.7(Max) |

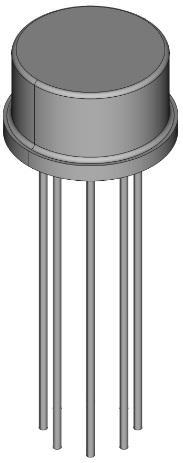

| Supplier Package | TO-5 |
| Manufacturer Type | Voltage Comparator |
| Power Supply Type | Dual |
| Typical CMRR (dB) | 94(Min) |
| SVHC Exceeds Threshold | Yes |
| Typical Voltage Gain (dB) | 106.02 |
| Supplier Temperature Grade | Military |
| Typical Response Time (us) | 0.25(Max) |
| Maximum Supply Current (mA) | 4@15V/-2.5@-15V |
| Number of Channels per Chip | 1 |
| Typical Output Current (mA) | 50(Max) |
| Maximum Power Dissipation (mW) | 200 |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Bias Current (uA) | 0.025@±15V |
| Typical Dual Supply Voltage (V) | ±15 |
| Typical Voltage Gain Range (dB) | 90 to 110 |
| Typical Response Time Range (us) | 0.05 to 0.5 |
| Maximum Input Offset Voltage (mV) | 0.5@±15V |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | ±18 |
| Description |
