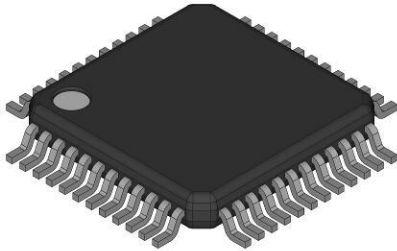

Clock Buffers and Drivers PI6C485352FAEX-2017
Diodes Incorporated
PI6C485352FAEX-2017
--
Clock and Timing
Clock Buffers and Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| Type | Clock Multiplexer |
| Fanout | 1:12 |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Packaging | Tape and Reel |
| Pin Count | 48 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 48 |
| Part Status | Active |
| Package Width | 7 |
| Package Height | 1 |
| Package Length | 7 |
| Supplier Package | TQFP |
| Input Logic Level | HCSL|LVDS|LVHSTL|LVPECL|SSTL |
| Maximum Duty Cycle | 55% |
| Output Logic Level | LVPECL |
| Standard Package Name | QFP |
| Number of Outputs per Chip | 12 |
| Maximum Input Frequency (MHz) | 500 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 4 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 4@2.97V to 3.63V |
| Description |
