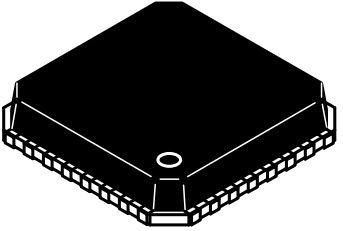

Clock Buffers and Drivers MC100EP809MNG
onsemi
MC100EP809MNG
--
Clock and Timing
Clock Buffers and Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| Type | Clock Driver |
| Fanout | 1:9 |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 32 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 32 |
| Part Status | Active |
| Package Width | 5 |
| Package Height | 0.95(Max) |
| Package Length | 5 |
| Supplier Package | QFN EP |
| Input Logic Level | LVDS|LVPECL|HSTL |
| Output Logic Level | HSTL |
| Standard Package Name | QFN |
| Number of Outputs per Chip | 9 |
| Maximum Input Frequency (MHz) | >750 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | 0 |
| Absolute Propagation Delay Time (ns) | 1.11 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 1@3V to 3.6V |
| Description |
