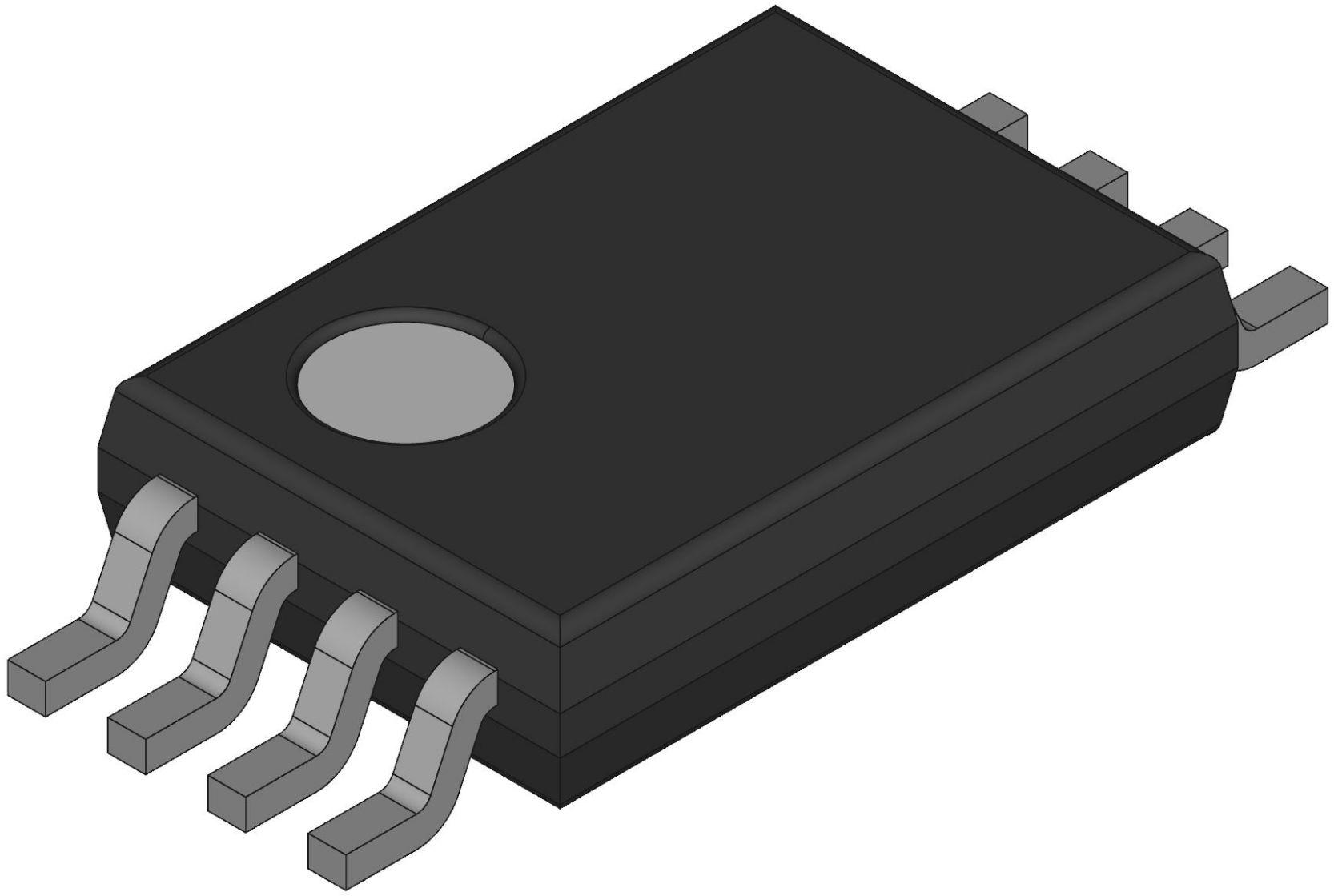

Clock Buffers and Drivers CY2304NZZC-1T
Cypress
CY2304NZZC-1T
--
Clock and Timing
Clock Buffers and Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| Type | Fanout Buffer |
| Fanout | 1:4 |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 8 |
| Part Status | Obsolete |
| Package Width | 4.5(Max) |
| Package Height | 0.95(Max) |
| Package Length | 3.1(Max) |
| Supplier Package | TSSOP |
| Input Logic Level | LVTTL|LVCMOS |
| Maximum Duty Cycle | 60% |
| Output Logic Level | LVCMOS |
| Standard Package Name | SOP |
| Number of Outputs per Chip | 4 |
| Supplier Temperature Grade | Commercial |
| Maximum Input Frequency (MHz) | 140 |
| Maximum Quiescent Current (mA) | 25 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Absolute Propagation Delay Time (ns) | 5 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 5@3V to 3.6V |
| Description |
