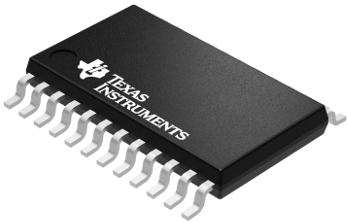

Bus Transceivers V62/04677-01XE
Texas Instruments
V62/04677-01XE
--
Transceivers
Bus Transceivers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Bus Hold | Yes |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 24 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Input Level | LVTTL |
| Output Type | 3-State |
| PCB changed | 24 |
| Part Status | Active |
| Logic Family | LVT |
| Output Level | LVTTL |
| Package Width | 4.5(Max) |
| Logic Function | Latched Transceiver |
| Package Height | 1.05(Max) |
| Package Length | 7.9(Max) |
| Supplier Package | TSSOP |
| Tolerant I/Os (V) | 5 |
| Process Technology | BiCMOS |
| Data Flow Direction | Bi-Directional |
| Standard Package Name | SOP |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (uA) | 5000 |
| Number of Direction Control Inputs | 0 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Input Enables per Element | 4 Low |
| Absolute Propagation Delay Time (ns) | 6.8 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 2.7 |
| Number of Output Enables per Element | 2 Low |
| Maximum Low Level Output Current (mA) | 64 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -32 |
| Number of Selection Inputs per Element | 0 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 2.5(Typ)@3.3V |
| Description |
