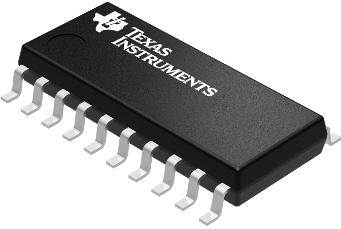

Bus Transceivers SN74LVCZ245ANSE4
Texas Instruments
SN74LVCZ245ANSE4
--
Transceivers
Bus Transceivers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Input Level | LVTTL|TTL |
| Output Type | 3-State |
| PCB changed | 20 |
| Part Status | Obsolete |
| Logic Family | LVC |
| Output Level | LVCMOS |
| Package Width | 5.6(Max) |
| Logic Function | Bus Transceiver |
| Package Height | 1.85(Max) |
| Package Length | 12.9(Max) |
| Supplier Package | SOP |
| Tolerant I/Os (V) | 5 |
| Process Technology | CMOS |
| Data Flow Direction | Bi-Directional |
| Standard Package Name | SOP |
| Supplier Temperature Grade | Commercial |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (uA) | 100 |
| Number of Direction Control Inputs | 1 Low/High |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Input Enables per Element | 0 |
| Absolute Propagation Delay Time (ns) | 9.5 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 2.7 |
| Number of Output Enables per Element | 1 Low |
| Maximum Low Level Output Current (mA) | 24 |
| Propagation Delay Test Condition (pF) | 30 |
| Maximum High Level Output Current (mA) | -24 |
| Number of Selection Inputs per Element | 0 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 6.3@3.3V|7.3@2.7V |
| Description |
