Bus Transceivers SN74GTL16612DL
Texas Instruments

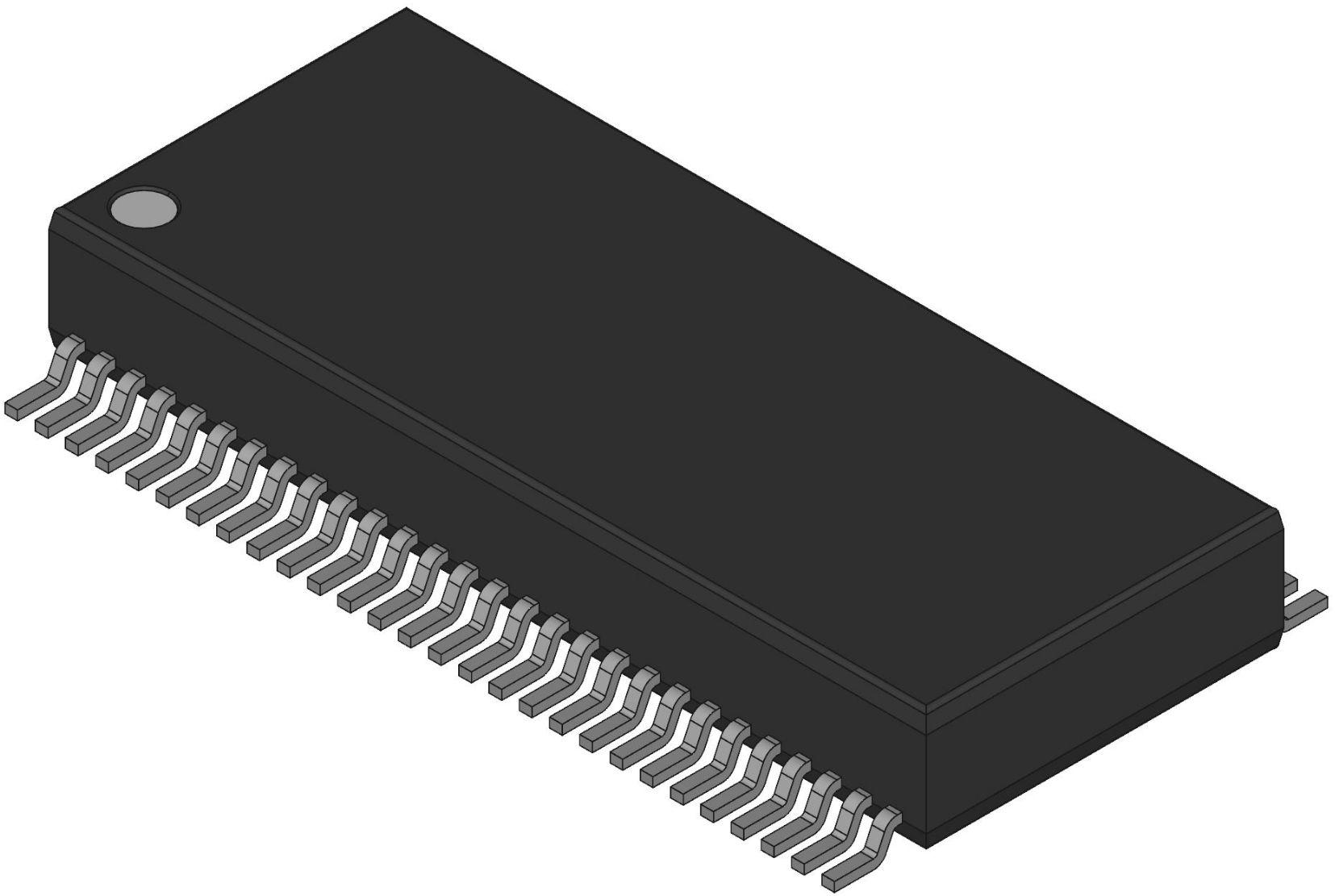

SN74GTL16612DL
--
Transceivers
Bus Transceivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Bus Hold | Yes |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 56 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Input Level | LVTTL|TTL |
| Output Type | 3-State |
| PCB changed | 56 |
| Part Status | Active |
| Logic Family | GTL |
| Output Level | GTL |
| Package Width | 7.59(Max) |
| Logic Function | Universal Bus Transceiver |
| Package Height | 2.79(Max) - 0.2(Min) |
| Package Length | 18.54(Max) |
| Triggering Type | Positive-Edge |
| Supplier Package | SSOP |
| Process Technology | BiCMOS |
| Data Flow Direction | Bi-Directional |
| Standard Package Name | SOP |
| Supplier Temperature Grade | Commercial |
| Number of Channels per Chip | 18 |
| Number of Elements per Chip | 1 |
| Number of Direction Control Inputs | 0 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 7.4 |
| Maximum Operating Supply Voltage (V) | 5.25 |
| Minimum Operating Supply Voltage (V) | 3.15 |
| Maximum Low Level Output Current (mA) | 64 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -32 |
| Number of Selection Inputs per Element | 0 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 4(Typ)@3.15V to 5.25V |
