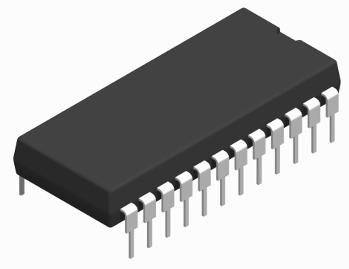

Bus Transceivers SN74ABT543ANT
Texas Instruments
SN74ABT543ANT
--
Transceivers
Bus Transceivers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Through Hole |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 24 |
| Automotive | No |
| Lead Shape | Through Hole |
| Input Level | TTL |
| Output Type | 3-State |
| PCB changed | 24 |
| Part Status | Obsolete |
| Logic Family | ABT |
| Output Level | TTL |
| Package Width | 7.11(Max) |
| Logic Function | Latched Transceiver |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 32.04(Max) |
| Supplier Package | PDIP |
| Process Technology | BiCMOS |
| Data Flow Direction | Bi-Directional |
| Standard Package Name | DIP |
| Supplier Temperature Grade | Commercial |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (uA) | 30000 |
| Typical Quiescent Current (uA) | 24000 |
| Number of Direction Control Inputs | 0 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Input Enables per Element | 4 Low |
| Absolute Propagation Delay Time (ns) | 8.4 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Number of Output Enables per Element | 2 Low |
| Maximum Low Level Output Current (mA) | 64 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -32 |
| Number of Selection Inputs per Element | 0 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 5.9@5V |
