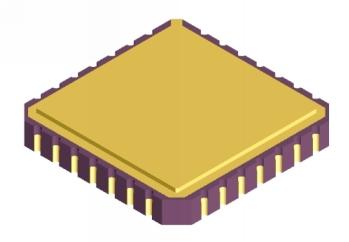

Bus Transceivers DS1776E/883
Texas Instruments
DS1776E/883
--
Transceivers
Bus Transceivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant with Exemption |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tray |
| Pin Count | 28 |
| Automotive | No |
| Lead Shape | No Lead |
| Output Type | 3-State |
| PCB changed | 28 |
| Part Status | Active |
| Package Width | 11.63(Max) |
| Logic Function | Latched Transceiver |
| Package Height | 2.03(Max) |
| Package Length | 11.63(Max) |
| Supplier Package | CLLCC |
| Process Technology | BiCMOS |
| Data Flow Direction | Bi-Directional |
| Standard Package Name | LLCC |
| Supplier Temperature Grade | Military |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Number of Direction Control Inputs | 0 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Number of Input Enables per Element | 1 Low |
| Absolute Propagation Delay Time (ns) | 22 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Number of Output Enables per Element | 2 Low/1 High |
| Maximum Low Level Output Current (mA) | 100 |
| Maximum High Level Output Current (mA) | -3 |
| Number of Selection Inputs per Element | 0 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 17@5V |
| Description |
