Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | Unknown |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 20 |
| Automotive | Unknown |
| Input Level | LVTTL |
| Output Type | 3-State |
| PCB changed | 20 |
| Part Status | Active |
| Logic Family | LV |
| Output Level | LVTTL |
| Package Width | 4.5(Max) |
| Logic Function | Bus Transceiver |
| Package Height | 0.95(Max) |
| Package Length | 6.6(Max) |

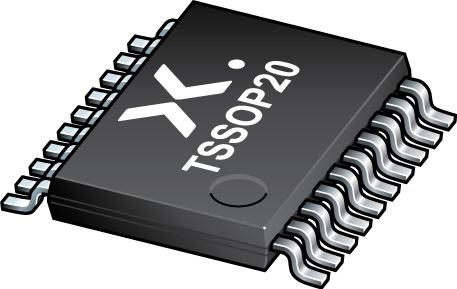

| Supplier Package | TSSOP |
| Process Technology | CMOS |
| Data Flow Direction | Bi-Directional |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 400 |
| Maximum Quiescent Current (uA) | 160 |
| Number of Direction Control Inputs | 1 Low/High |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Input Enables per Element | 0 |
| Absolute Propagation Delay Time (ns) | 39 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 1 |
| Number of Output Enables per Element | 1 Low |
| Maximum Low Level Output Current (mA) | 16 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -16 |
| Number of Selection Inputs per Element | 0 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 45(Typ)@1.2V|15(Typ)@2V|11(Typ)@2.7V|9(Typ)@3.3V|8(Typ)@5V |
| Description |
