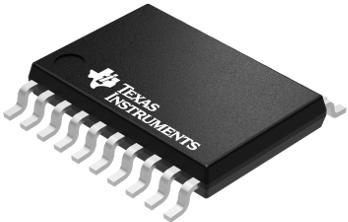

Bus Transceivers 5962-9155301MKA
Texas Instruments
5962-9155301MKA
--
Transceivers
Bus Transceivers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Not Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 24 |
| Automotive | No |
| Lead Shape | Flat |
| Input Level | TTL |
| Output Type | 3-State |
| PCB changed | 24 |
| Part Status | Obsolete |
| Logic Family | BCT |
| Output Level | TTL |
| Package Width | 9.53(Max) |
| Logic Function | Bus Transceiver/Register |
| Package Height | 2.29(Max) |
| Package Length | 16.26(Max) |
| Triggering Type | Positive-Edge |
| Supplier Package | CFPAK |
| Process Technology | BiCMOS |
| Data Flow Direction | Bi-Directional |
| Standard Package Name | FPAK |
| Supplier Temperature Grade | Military |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Number of Direction Control Inputs | 0 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Number of Input Enables per Element | 0 |
| Absolute Propagation Delay Time (ns) | 14.2 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Number of Output Enables per Element | 1 Low/1 High |
| Maximum Low Level Output Current (mA) | 48 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -12 |
| Number of Selection Inputs per Element | 2 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 8.9@5V |
| Description |
