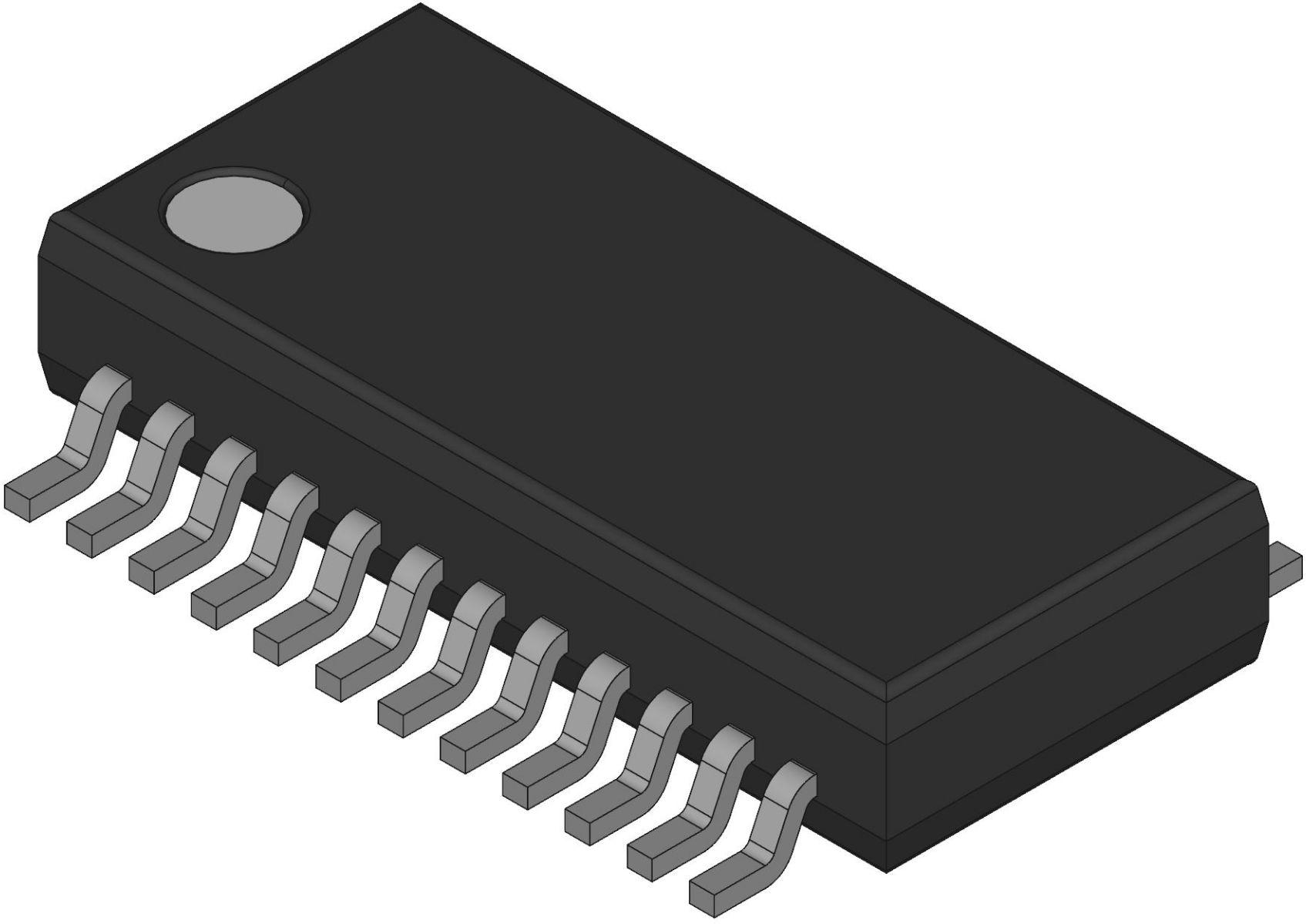

Bus Switches PI3C3384QEX-2017
Diodes Incorporated
PI3C3384QEX-2017
--
Electronic Switches
Bus Switches
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 24 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 24 |
| Part Status | Active |
| Configuration | 5 x 1:1 |
| Package Width | 3.91 |
| Logic Function | Bus Switch |
| Package Height | 1.24(Min) |
| Package Length | 8.66 |
| Supplier Package | QSOP |
| Standard Package Name | SOP |
| Number of Inputs per Chip | 10 |
| Number of Outputs per Chip | 10 |
| Maximum On Resistance (Ohm) | 8(Typ) |
| Number of Elements per Chip | 2 |
| Maximum Power Dissipation (mW) | 1000 |
| Maximum Quiescent Current (uA) | 500 |
| Typical Quiescent Current (uA) | 260 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 9.8 |
| Maximum Operating Supply Voltage (V) | 3.63 |
| Typical Operating Supply Voltage (V) | 2.5|3.3 |
| Maximum Low Level Output Current (mA) | 120 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -120 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 0.25@3.3V |
| Description |
