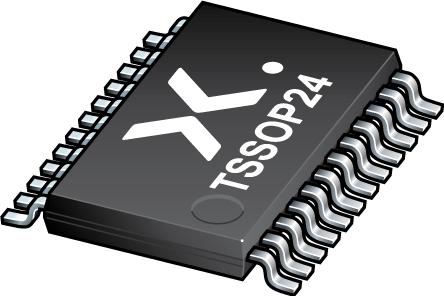

Bus Switches 74CBTLVD3384PW,118
Nexperia
74CBTLVD3384PW,118
--
Electronic Switches
Bus Switches
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 24 |
| Automotive | No |
| PCB changed | 24 |
| Part Status | Active |
| Logic Family | CBTLV |
| Configuration | 5 x 1:1 |
| Package Width | 4.5(Max) |
| Logic Function | Bus Switch |
| Package Height | 0.95(Max) |
| Package Length | 7.9(Max) |
| Supplier Package | TSSOP |
| Process Technology | CMOS |
| Number of Inputs per Chip | 10 |
| Number of Outputs per Chip | 10 |
| Maximum On Resistance (Ohm) | 4.7(Typ) |
| Number of Elements per Chip | 2 |
| Maximum Power Dissipation (mW) | 500 |
| Maximum Quiescent Current (uA) | 150 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 8 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Low Level Output Current (mA) | 128 |
| Propagation Delay Test Condition (pF) | 30 |
| Maximum High Level Output Current (mA) | -128 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 0.22@3V to 3.6V |
| Description |
