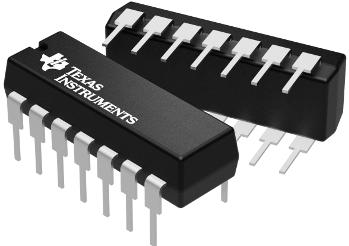

Bus Line Transceivers MC1488N
Texas Instruments
MC1488N
--
Drivers and Interfaces
Bus Line Transceivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Function | Line Transmitter |
| Mounting | Through Hole |
| Data Rate | 300Kbps |
| ECCN (US) | EAR99 |
| Isolation | No |
| Packaging | Tube |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 14 |
| Part Status | Active |
| Package Width | 6.6(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 19.69(Max) |
| Supplier Package | PDIP |
| Power Supply Type | Dual |
| Interface Standards | EIA/TIA-232-E|V.28 |
| Standard Package Name | DIP |
| Number of Transmitters | 4 |
| Transmitter Signal Type | Single-Ended |
| Data Transmission Topology | Point-to-Point |
| Number of Drivers per Line | 1 |
| Supplier Temperature Grade | Commercial |
| Maximum Supply Current (mA) | 34 |
| Transmitter Communication Type | RS-232 |
| Maximum Dual Supply Voltage (V) | ±15 |
| Minimum Dual Supply Voltage (V) | ±7.5 |
| Typical Dual Supply Voltage (V) | ±9 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Description |
