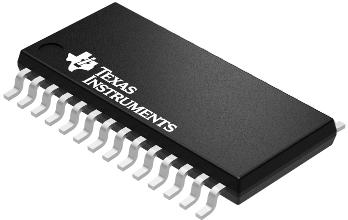

Bus Line Transceivers MAX3237ECPWRG4
Texas Instruments
MAX3237ECPWRG4
--
Drivers and Interfaces
Bus Line Transceivers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Function | Line Transceiver |
| Mounting | Surface Mount |
| Data Rate | 1Mbps(Min) |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 28 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 28 |
| Part Status | Active |
| Driving Mode | 3-State |
| Package Width | 4.5(Max) |
| Package Height | 1.05(Max) |
| Package Length | 9.8(Max) |
| Supplier Package | TSSOP |
| Power Supply Type | Single |
| Interface Standards | EIA/TIA-232-F|RS-232|V.28 |
| Number of Receivers | 3 |
| Receiver Signal Type | Single-Ended |
| Standard Package Name | SOP |
| Number of Transceivers | 1 |
| Number of Transmitters | 5 |
| Transmitter Signal Type | Single-Ended |
| Data Transmission Topology | Point-to-Point |
| Number of Drivers per Line | 1 |
| Number of Receiver Enables | 1 |
| Supplier Temperature Grade | Commercial |
| Maximum Supply Current (mA) | 2 |
| Receiver Communication Type | RS-232 |
| Number of Receivers per Line | 1 |
| Number of Transmitter Enables | 1 |
| Transmitter Communication Type | RS-232 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 3.3|5 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Description |
