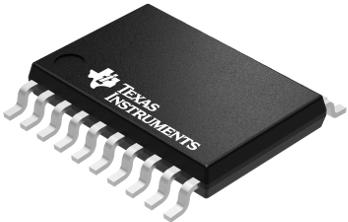

Bus Line Transceivers GD75232PWRG4
Texas Instruments
GD75232PWRG4
--
Drivers and Interfaces
Bus Line Transceivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Function | Line Transceiver |
| Mounting | Surface Mount |
| Data Rate | 120Kbps |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 20 |
| Part Status | Active |
| Driving Mode | No |
| Package Width | 4.5(Max) |
| Package Height | 1.05(Max) |
| Package Length | 6.6(Max) |
| Supplier Package | TSSOP |
| Power Supply Type | Triple |
| Interface Standards | EIA/TIA-232-F|V.28 |
| Number of Receivers | 5 |
| Receiver Signal Type | Single-Ended |
| Standard Package Name | SOP |
| Number of Transceivers | 1 |
| Number of Transmitters | 3 |
| Transmitter Signal Type | Single-Ended |
| Data Transmission Topology | Point-to-Point |
| Number of Drivers per Line | 1 |
| Number of Receiver Enables | 0 |
| Supplier Temperature Grade | Industrial |
| Maximum Supply Current (mA) | 38 |
| Receiver Communication Type | RS-232 |
| Number of Receivers per Line | 1 |
| Number of Transmitter Enables | 0 |
| Transmitter Communication Type | RS-232 |
| Maximum Dual Supply Voltage (V) | ±15|5.5 |
| Minimum Dual Supply Voltage (V) | ±7.5|4.5 |
| Typical Dual Supply Voltage (V) | ±9|5 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Description |
