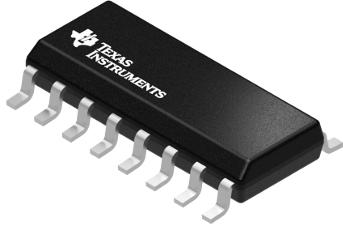

Bus Line Transceivers DS34LV86TMX
Texas Instruments
DS34LV86TMX
--
Drivers and Interfaces
Bus Line Transceivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Function | Line Receiver |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 16 |
| Part Status | Obsolete |
| Driving Mode | 3-State |
| Package Width | 4(Max) |
| Package Height | 1.5(Max) |
| Package Length | 10(Max) |
| Supplier Package | SOIC |
| Power Supply Type | Single |
| Interface Standards | EIA/TIA-422-B|RS-422|V.11 |
| Number of Receivers | 4 |
| Receiver Signal Type | Differential |
| Standard Package Name | SOP |
| SVHC Exceeds Threshold | Yes |
| Data Transmission Topology | Multidrop |
| Number of Receiver Enables | 1 |
| Supplier Temperature Grade | Industrial |
| Maximum Supply Current (mA) | 15 |
| Receiver Communication Type | RS-422 |
| Number of Receivers per Line | 10 |
| Maximum Single Supply Voltage (V) | 3.6 |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 3.3 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
