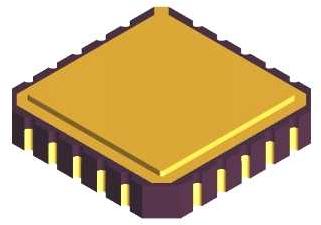

Bus Line Transceivers 5962-9318301Q2A
Texas Instruments
5962-9318301Q2A
--
Drivers and Interfaces
Bus Line Transceivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Function | Line Transceiver |
| Mounting | Surface Mount |
| Data Rate | 10Mbps |
| ECCN (US) | EAR99 |
| Isolation | No |
| Packaging | Tube |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 20 |
| Part Status | Active |
| Driving Mode | 3-State |
| Package Width | 9.09(Max) |
| Package Height | 2.03(Max) |
| Package Length | 9.09(Max) |
| Supplier Package | CLLCC |
| Power Supply Type | Single |
| Interface Standards | EIA/TIA-485-A|ISO-8482|RS-485 |
| Number of Receivers | 1 |
| Receiver Signal Type | Differential |
| Standard Package Name | LLCC |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Transmitter Signal Type | Differential |
| Data Transmission Topology | Multipoint |
| Number of Drivers per Line | 32 |
| Number of Receiver Enables | 1 |
| Supplier Temperature Grade | Military |
| Maximum Supply Current (mA) | 1.75 |
| Receiver Communication Type | RS-485 |
| Number of Receivers per Line | 32 |
| Number of Transmitter Enables | 1 |
| Transmitter Communication Type | RS-485 |
| Maximum Single Supply Voltage (V) | 5.25 |
| Minimum Single Supply Voltage (V) | 4.75 |
| Typical Single Supply Voltage (V) | 5 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Description |
