Buffers and Line Drivers SN74LVC3G17DCTRG4
Texas Instruments

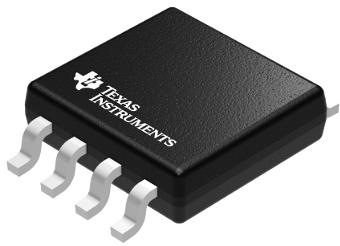

SN74LVC3G17DCTRG4
--
Standard and Specialty Logic
Buffers and Line Drivers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Push-Pull |
| PCB changed | 8 |
| Part Status | Active |
| Logic Family | LVC |
| Package Width | 2.9(Max) |
| Logic Function | Schmitt Trigger Buffer |
| Package Height | 1.2(Max) |
| Package Length | 3.15(Max) |
| Supplier Package | SSOP |
| Input Signal Type | Single-Ended |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Number of Inputs per Chip | 3 |
| Number of Outputs per Chip | 3 |
| Number of Channels per Chip | 3 |
| Number of Elements per Chip | 3 |
| Number of Input Enables per Chip | 0 |
| Number of Output Enables per Chip | 0 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 1.65 |
| Maximum Low Level Output Current (mA) | 32 |
| Maximum High Level Output Current (mA) | -32 |
| Description |
