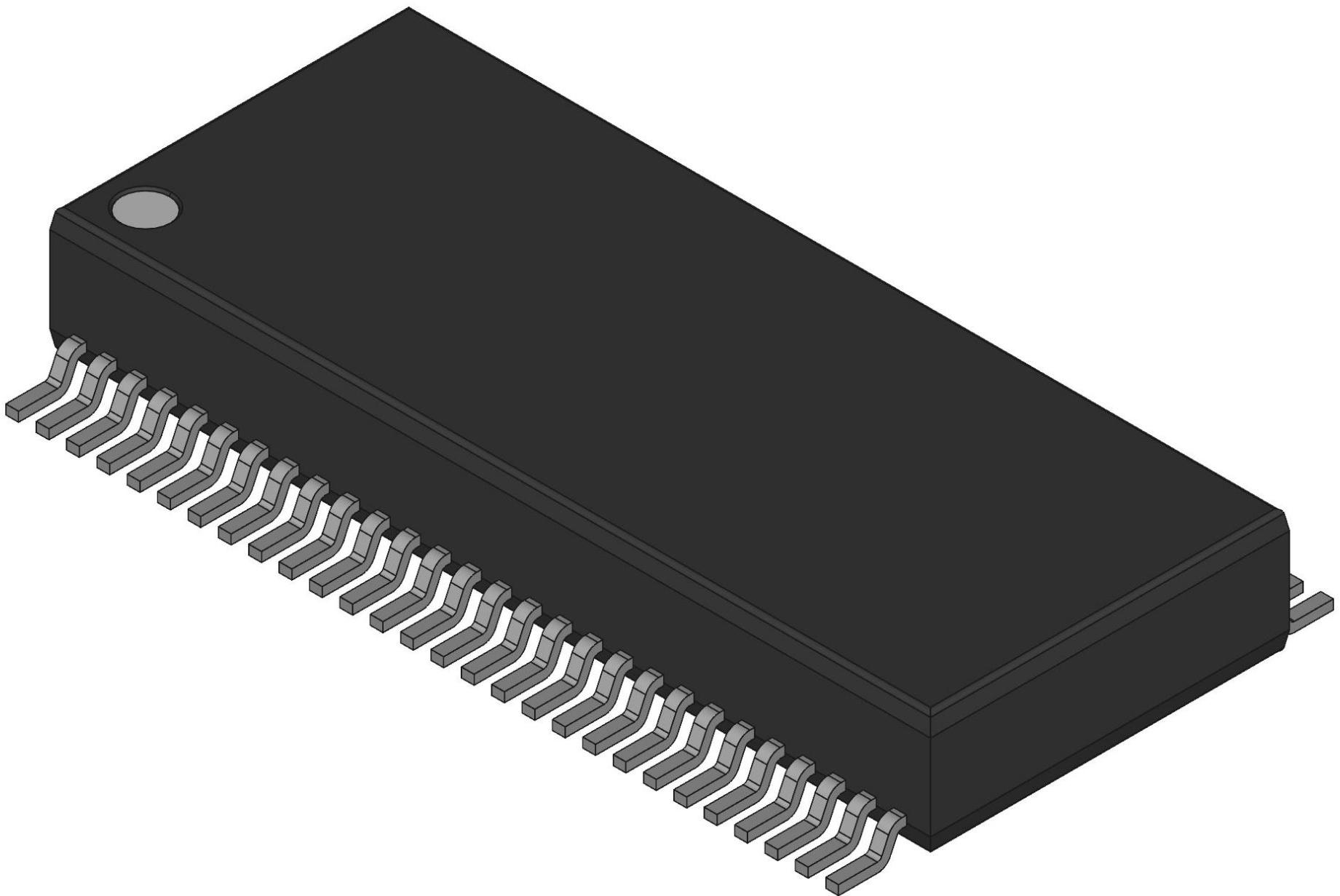

Buffers and Line Drivers SCAN18540TSSC
onsemi
SCAN18540TSSC
--
Standard and Specialty Logic
Buffers and Line Drivers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Inverting |
| ECCN (US) | EAR99 |
| Packaging | Rail |
| Pin Count | 56 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | 3-State |
| PCB changed | 56 |
| Part Status | Obsolete |
| Logic Family | SCAN |
| Package Width | 7.59(Max) |
| Logic Function | Scan Buffer/Line Driver |
| Package Height | 2.74(Max) - 0.25(Min) |
| Package Length | 18.54(Max) |
| Supplier Package | SSOP |
| Input Signal Type | Single-Ended |
| Standard Package Name | SOP |
| Number of Inputs per Chip | 18 |
| Number of Outputs per Chip | 18 |
| Number of Channels per Chip | 18 |
| Number of Elements per Chip | 2 |
| Maximum Quiescent Current (uA) | 750 |
| Number of Input Enables per Chip | 0 |
| Number of Output Enables per Chip | 2 Low |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 25.7 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 64 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -32 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 9@5V |
| Description |
