Buffers and Line Drivers 74HC2G17GV-Q100H
Nexperia
74HC2G17GV-Q100H
--
Standard and Specialty Logic
Buffers and Line Drivers
Specification
| Product Attribute | Attribute Value |
| PPAP | Unknown |
| SVHC | Yes |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 6 |
| Automotive | Yes |
| PCB changed | 6 |
| Part Status | Active |
| Logic Family | HC |
| Package Width | 1.7(Max) |
| Logic Function | Schmitt Trigger Buffer |
| Package Height | 1(Max) |
| Package Length | 3.1(Max) |

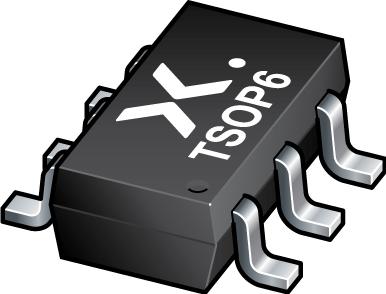

| Supplier Package | TSOP |
| Input Signal Type | Single-Ended |
| Process Technology | CMOS |
| Number of Inputs per Chip | 2 |
| Number of Outputs per Chip | 2 |
| Number of Channels per Chip | 2 |
| Number of Elements per Chip | 2 |
| Maximum Power Dissipation (mW) | 250 |
| Maximum Quiescent Current (uA) | 1 |
| Number of Input Enables per Chip | 0 |
| Number of Output Enables per Chip | 0 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 175 |
| Maximum Operating Supply Voltage (V) | 6 |
| Minimum Operating Supply Voltage (V) | 2 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 5.2 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -5.2 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 115@2V|22@4.5V|18@6V |
| Description |
