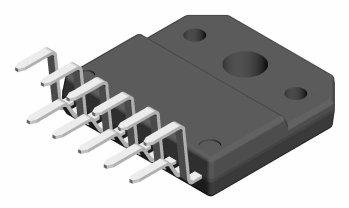

Audio Amplifiers LM3886TF
Texas Instruments
LM3886TF
--
Amplifier
Audio Amplifiers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| Tab | Tab |
| PPAP | No |
| SVHC | Yes |
| THDN | 0.03%@4Ohm@60W |
| EU RoHS | Not Compliant |
| Function | Speaker |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 11 |
| Automotive | No |
| Output Type | 1-Channel Mono |
| PCB changed | 11 |
| Part Status | Active |
| Package Width | 4.5 |
| Amplifier Type | Class-AB |
| Package Height | 10.64 |
| Package Length | 20.02 |
| Supplier Package | TO-220 |
| Power Supply Type | Dual|Single |
| Output Signal Type | Single |
| Standard Package Name | TO-220 |
| SVHC Exceeds Threshold | Yes |
| Maximum Output Current (mA) | 11500(Typ) |
| Maximum Power Dissipation (mW) | 125000 |
| Maximum Quiescent Current (mA) | 85@±28V |
| Maximum Dual Supply Voltage (V) | ±42 |
| Maximum Input Bias Current (uA) | 1@±28V |
| Minimum Dual Supply Voltage (V) | ±10 |
| Typical Dual Supply Voltage (V) | ±9 |
| Maximum Input Offset Voltage (mV) | 10 |
| Maximum Single Supply Voltage (V) | 84 |
| Minimum Single Supply Voltage (V) | 20 |
| Typical Single Supply Voltage (V) | 18 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Typical Gain Bandwidth Product (MHz) | 8 |
| Typical Output Power x Channels @ Load (W) | 68x1@4Ohm |
| Description |
