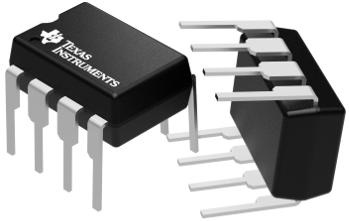

Audio Amplifiers LM380N-8/NOPB
Texas Instruments
LM380N-8/NOPB
--
Amplifier
Audio Amplifiers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| THDN | 0.2%@8Ohm |
| EU RoHS | Compliant |
| Function | Speaker |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | 1-Channel Mono |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 6.6(Max) |
| Amplifier Type | Class-AB |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 10.16(Max) |
| Supplier Package | PDIP |
| Power Supply Type | Single |
| Output Signal Type | Single |
| Standard Package Name | DIP |
| Maximum Power Dissipation (mW) | 1670 |
| Maximum Quiescent Current (mA) | 25@18V |
| Maximum Input Bias Current (uA) | 0.1(Typ)@18V |
| Maximum Single Supply Voltage (V) | 22 |
| Minimum Single Supply Voltage (V) | 10 |
| Typical Single Supply Voltage (V) | 12|15|18 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Typical Output Power x Channels @ Load (W) | 2.5(Min)x1@8Ohm |
