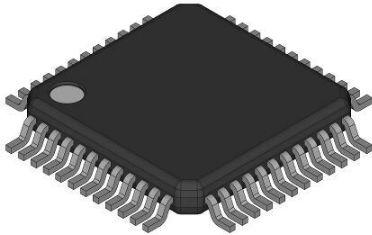

Analog to Digital Converters - ADCs TSA1201IF
STMicroelectronics
TSA1201IF
--
Data Acquisition
Analog to Digital Converters - ADCs
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tray |
| Pin Count | 48 |
| Automotive | No |
| Input Type | Voltage |
| Lead Shape | Gull-wing |
| Resolution | 12bit |
| PCB changed | 48 |
| Part Status | Obsolete |
| Architecture | Pipelined |
| Input Voltage | 2Vp-p |
| Package Width | 7 |
| Sampling Rate | 50Msps |
| Converter Type | General Purpose |
| Number of ADCs | 1 |
| Package Height | 1.4 |
| Package Length | 7 |
| Sample and Hold | Yes |
| Supplier Package | TQFP |
| Input Signal Type | Single-Ended|Differential |
| Voltage Reference | Internal|External |
| Single-Ended Input | Yes |
| Signal to Noise Ratio | 64.9dB(Typ) |
| Standard Package Name | QFP |
| Voltage Supply Source | Analog and Digital |
| Digital Interface Type | Parallel |
| Digital Supply Support | Yes |
| SVHC Exceeds Threshold | Yes |
| Number of Input Channels | 1 |
| Integral Nonlinearity Error | ±1.7LSB(Typ) |
| Maximum Power Dissipation (mW) | 150 |
| Maximum Single Supply Voltage (V) | 2.7 |
| Minimum Single Supply Voltage (V) | 2.25 |
| Typical Single Supply Voltage (V) | 2.5 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
