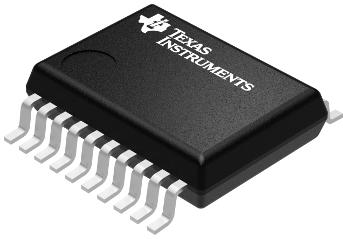

Analog to Digital Converters - ADCs PCM1803ADBG4
Texas Instruments
PCM1803ADBG4
--
Data Acquisition
Analog to Digital Converters - ADCs
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 20 |
| Automotive | No |
| Input Type | Voltage |
| Lead Shape | Gull-wing |
| Resolution | 24bit |
| PCB changed | 20 |
| Part Status | Active |
| Architecture | Delta-Sigma |
| Input Voltage | 3Vp-p |
| Package Width | 5.6(Max) |
| Sampling Rate | 96ksps |
| Converter Type | Audio |
| Number of ADCs | 2 |
| Package Height | 2(Max) - 0.05(Min) |
| Package Length | 7.5(Max) |
| Sample and Hold | No |
| Full Scale Error | ±4%FSR |
| Supplier Package | SSOP |
| Input Signal Type | Single-Ended |
| Single-Ended Input | Yes |
| Signal to Noise Ratio | 103dB(Typ) |
| Standard Package Name | SOP |
| Voltage Supply Source | Analog and Digital |
| Digital Interface Type | Serial |
| Digital Supply Support | Yes |
| Number of Input Channels | 2 |
| Maximum Power Dissipation (mW) | 80 |
| Typical Power Dissipation (mW) | 77 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Minimum Single Supply Voltage (V) | 4.5 |
| Typical Single Supply Voltage (V) | 5 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
