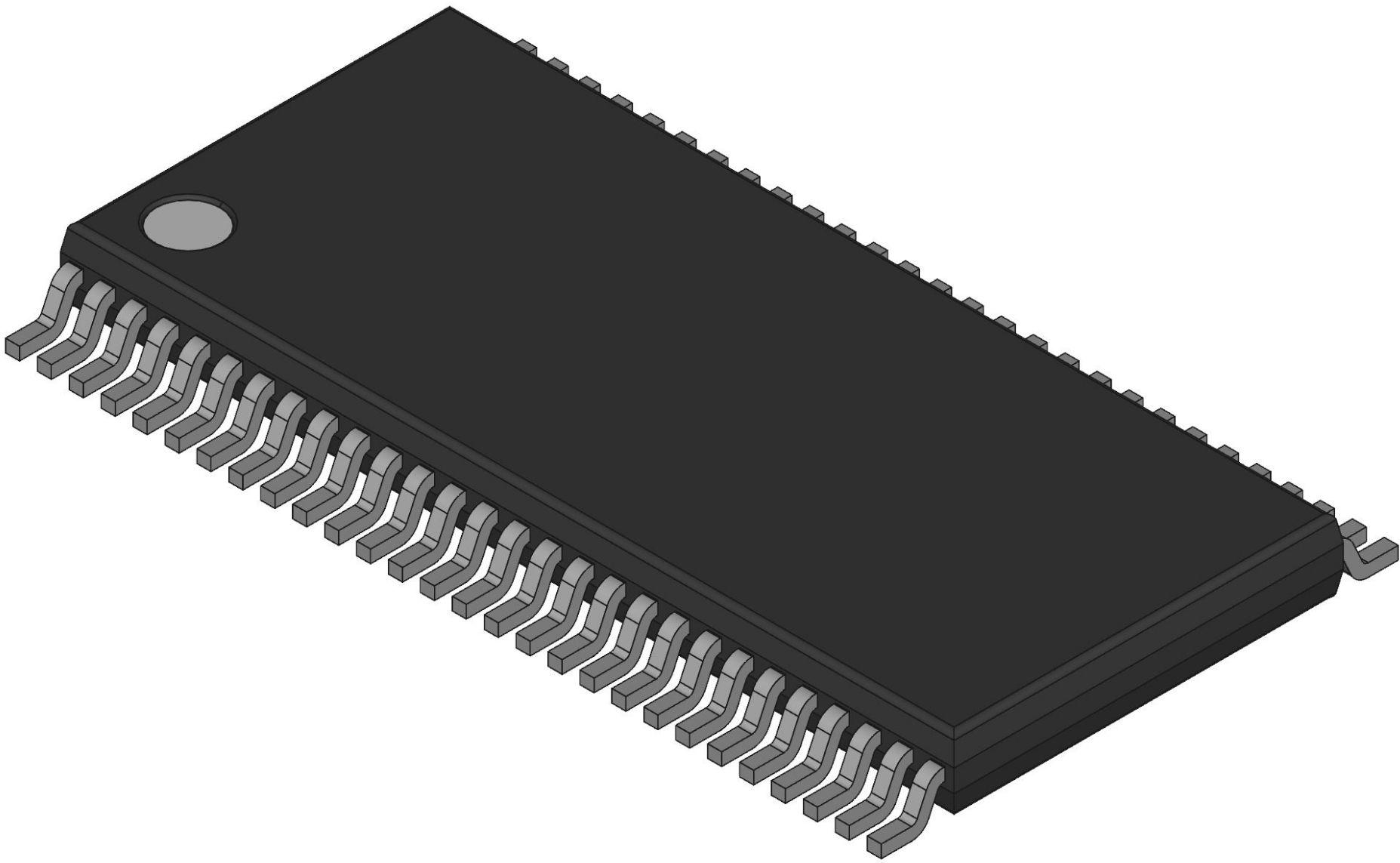

Analog to Digital Converters - ADCs LTC1604CG
ADI
LTC1604CG
--
Data Acquisition
Analog to Digital Converters - ADCs
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Pin Count | 36 |
| Automotive | No |
| Input Type | Voltage |
| Lead Shape | Gull-wing |
| Resolution | 16bit |
| PCB changed | 36 |
| Part Status | Unconfirmed |
| Architecture | SAR |
| Input Voltage | ±2.5V |
| Package Width | 5.6(Max) |
| Sampling Rate | 333ksps |
| Converter Type | General Purpose |
| Number of ADCs | 1 |
| Package Height | 2(Max) - 0.05(Min) |
| Package Length | 13.1(Max) |
| Sample and Hold | Yes |
| Full Scale Error | ±0.25%FSR |
| Supplier Package | SSOP |
| Input Signal Type | Single-Ended|Differential |
| Voltage Reference | Internal|External |
| Single-Ended Input | Yes |
| Signal to Noise Ratio | 90dB(Typ) |
| Standard Package Name | SOP |
| Voltage Supply Source | Dual |
| Digital Interface Type | Parallel |
| Digital Supply Support | Yes |
| No Missing Codes (bit) | 16 |
| SVHC Exceeds Threshold | Yes |
| Number of Input Channels | 1 |
| Polarity of Input Voltage | Bipolar |
| Supplier Temperature Grade | Commercial |
| Integral Nonlinearity Error | ±4LSB |
| Maximum Power Dissipation (mW) | 350 |
| Typical Power Dissipation (mW) | 220 |
| Maximum Dual Supply Voltage (V) | ±5.25 |
| Minimum Dual Supply Voltage (V) | ±4.75 |
| Typical Dual Supply Voltage (V) | ±5 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Description |
