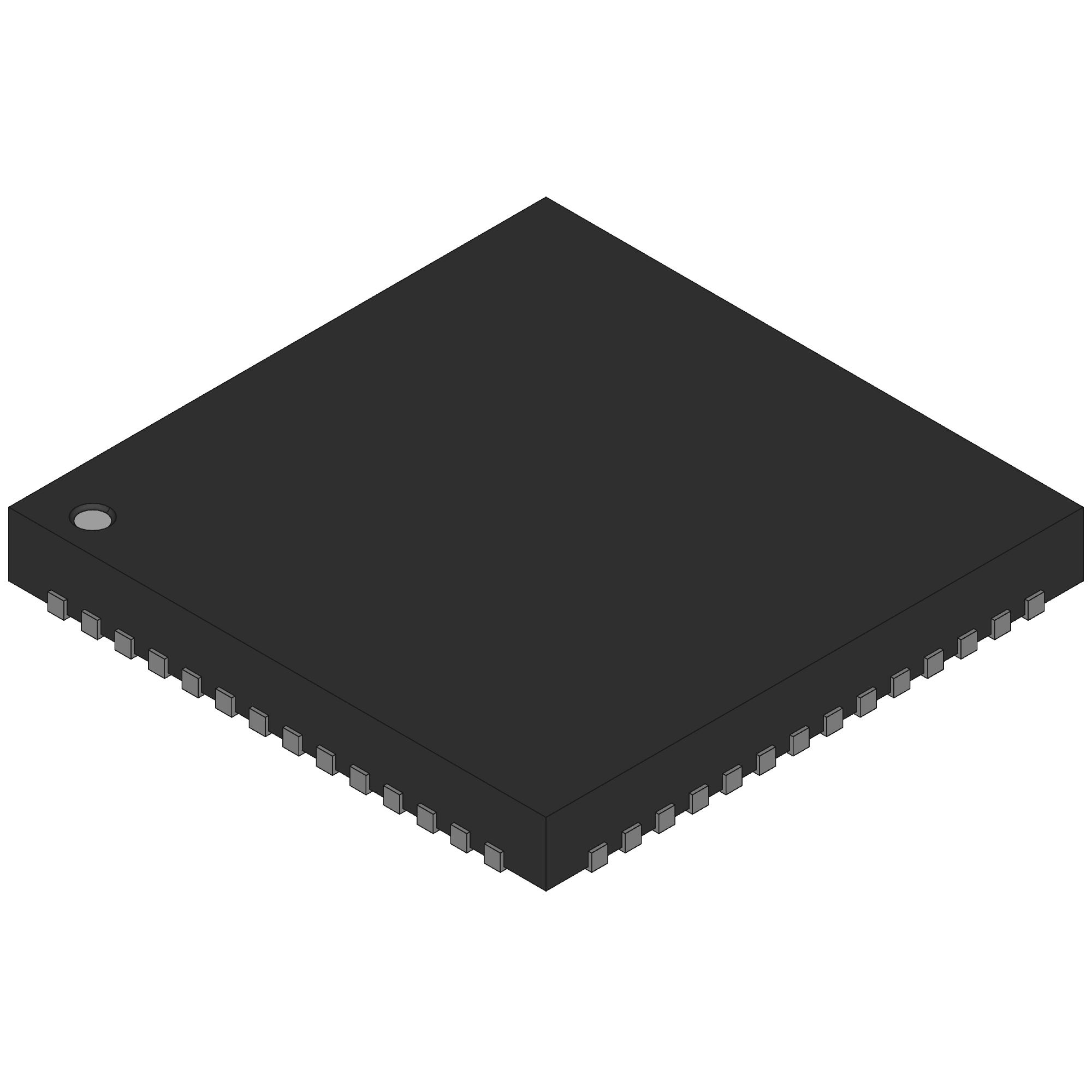

Analog to Digital Converters - ADCs AD9434BCPZ-370
ADI
AD9434BCPZ-370
--
Data Acquisition
Analog to Digital Converters - ADCs
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | 3A991c.2. |
| Packaging | Tray |
| Pin Count | 56 |
| Automotive | No |
| Input Type | Voltage |
| Lead Shape | No Lead |
| Resolution | 12bit |
| PCB changed | 56 |
| Part Status | Active |
| Architecture | Pipelined |
| Input Voltage | 1.5Vp-p |
| Package Width | 8 |
| Sampling Rate | 370Msps |
| Converter Type | General Purpose |
| Number of ADCs | 1 |
| Package Height | 0.83 |
| Package Length | 8 |
| Sample and Hold | Yes |
| Full Scale Error | -5/7%FSR |
| Supplier Package | LFCSP EP |
| Input Signal Type | Differential |
| Voltage Reference | Internal|External |
| Single-Ended Input | No |
| Signal to Noise Ratio | 66.3dBFS(Typ) |
| Standard Package Name | CSP |
| Voltage Supply Source | Single |
| Digital Interface Type | LVDS |
| Digital Supply Support | No |
| Number of Input Channels | 1 |
| Supplier Temperature Grade | Industrial |
| Integral Nonlinearity Error | ±0.92LSB |
| Maximum Power Dissipation (mW) | 685 |
| Typical Power Dissipation (mW) | 625 |
| Maximum Single Supply Voltage (V) | 1.9 |
| Minimum Single Supply Voltage (V) | 1.75 |
| Typical Single Supply Voltage (V) | 1.8 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
