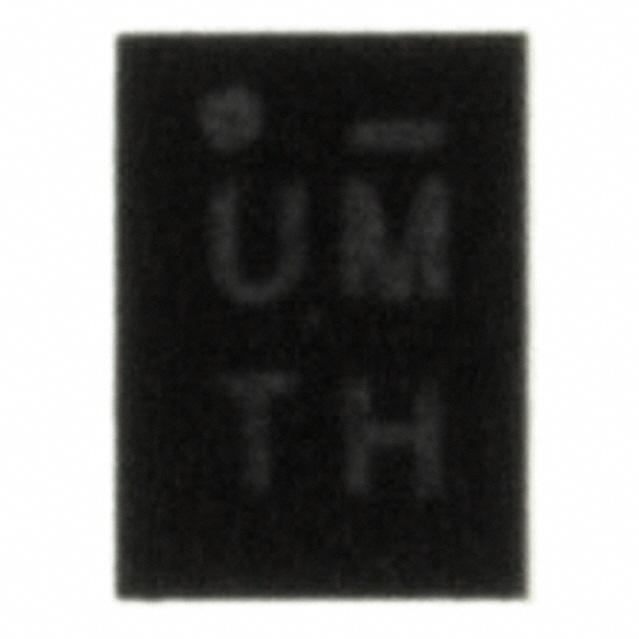

Analog Switch Multiplexers PI3DBV10ZEEX
Diodes Incorporated
PI3DBV10ZEEX
--
Electronic Switches
Analog Switch Multiplexers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Analog Multiplexer |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 12 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 12 |
| Part Status | Obsolete |
| Configuration | Single 2:1 |
| Package Width | 3 |
| Package Height | 0.75(Max) |
| Package Length | 3.5 |
| Supplier Package | TDFN EP |
| Input Signal Type | Differential |
| Power Supply Type | Single |
| Output Signal Type | Differential |
| Chip Enable Signals | No |
| Standard Package Name | DFN |
| Multiplexer Architecture | 2:1 |
| Maximum Turn-On Time (ns) | 15@3.3V@-40C to 85C |
| Number of Inputs per Chip | 4 |
| Maximum Turn-Off Time (ns) | 9@3.3V@-40C to 85C |
| Number of Outputs per Chip | 2 |
| Maximum On Resistance (Ohm) | 8@3.3V |
| Number of Channels per Chip | 1 |
| Maximum Power Dissipation (mW) | 500 |
| Maximum On Resistance Range (Ohm) | 5 to 10 |
| Maximum Single Supply Voltage (V) | 3.6 |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 3.3 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Frequency (25°C) @ Vcc (MHz) | 500(Typ)@3.3V@-40C to 85C |
| Maximum High Level Output Current (mA) | 120 |
| Maximum Propagation Delay Bus to Bus (ns) | 0.25(Typ)@3.3V@-40C to 85C |
| Description |
