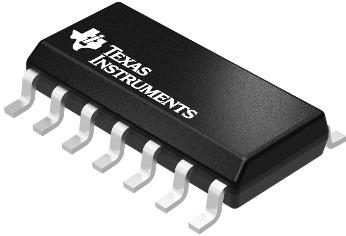

Analog Switch Multiplexers LMH6574MA
Texas Instruments
LMH6574MA
--
Electronic Switches
Analog Switch Multiplexers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| Type | Analog Multiplexer |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 14 |
| Part Status | NRND |
| Configuration | Single 4:1 |
| Package Width | 4(Max) |
| Package Height | 1.5(Max) |
| Package Length | 8.75(Max) |
| Supplier Package | SOIC |
| Input Signal Type | Single |
| Power Supply Type | Single|Dual |
| Output Signal Type | Single |
| Chip Enable Signals | Yes |
| Standard Package Name | SOP |
| SVHC Exceeds Threshold | Yes |
| Multiplexer Architecture | 4:1 |
| Maximum Turn-On Time (ns) | 10(Typ)@±5V |
| Number of Inputs per Chip | 4 |
| Maximum Turn-Off Time (ns) | 10(Typ)@±5V |
| Number of Outputs per Chip | 1 |
| Maximum Supply Current (mA) | 16@±5V |
| Number of Channels per Chip | 1 |
| Typical Supply Current (mA) | 13@±5V |
| Maximum Dual Supply Voltage (V) | ±6 |
| Minimum Dual Supply Voltage (V) | ±3 |
| Typical Dual Supply Voltage (V) | ±5 |
| Maximum Single Supply Voltage (V) | 12 |
| Minimum Single Supply Voltage (V) | 6 |
| Typical Single Supply Voltage (V) | 9 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Frequency (25°C) @ Vcc (MHz) | 500(Typ)@±5V|475(Typ)@±3.3V |
| Maximum High Level Output Current (mA) | 130 |
| Description |
