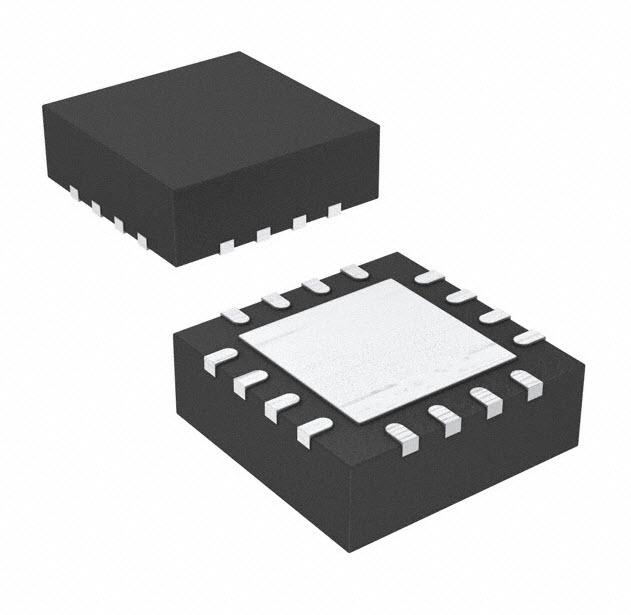

Analog Switch Multiplexers DG2042DN-T1-E4
Vishay
DG2042DN-T1-E4
--
Electronic Switches
Analog Switch Multiplexers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Analog Switch |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 16 |
| Part Status | Obsolete |
| Configuration | Quad SPST |
| Package Width | 4 |
| Package Height | 0.9(Max) |
| Package Length | 4 |
| Supplier Package | QFN EP |
| Input Signal Type | Single |
| Power Supply Type | Single |
| Output Signal Type | Single |
| Chip Enable Signals | Yes |
| Switch Architecture | SPST |
| Standard Package Name | QFN |
| Maximum Turn-On Time (ns) | 81@2V |
| Number of Inputs per Chip | 4 |
| Maximum Turn-Off Time (ns) | 41@2V |
| Number of Outputs per Chip | 4 |
| Maximum On Resistance (Ohm) | 6.3@2V |
| Maximum Supply Current (mA) | 0.001@5V@-40C to 85C |
| Number of Channels per Chip | 4 |
| Typical Supply Current (mA) | 0.000001@5V@-40C to 85C |
| Maximum Power Dissipation (mW) | 1880 |
| Maximum On Resistance Range (Ohm) | 5 to 10 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Minimum Single Supply Voltage (V) | 1.8 |
| Typical Single Supply Voltage (V) | 3|5 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Low Level Output Current (mA) | 50 |
| Maximum High Level Output Current (mA) | 50 |
| Description |
