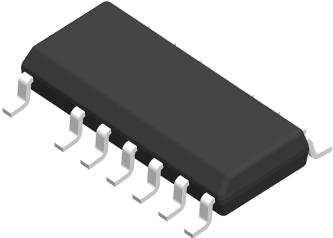

AC to DC Switching Converters UCC256404DDBT
Texas Instruments
UCC256404DDBT
--
Power Management
AC to DC Switching Converters
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.31.00.01 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Topology | Flyback |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 14 |
| Part Status | Active |
| Package Width | 4(Max) |
| Package Height | 1.5(Max) |
| Package Length | 10(Max) |
| Supplier Package | SOIC |
| Soft Start Option | Yes |
| Standard Package Name | SOP |
| Maximum Supply Voltage (V) | 26 |
| Minimum Supply Voltage (V) | 13 |
| Maximum Output Current (mA) | 100 |
| Maximum Operating Current (mA) | 2.7 |
| Maximum Under Voltage Lock Out (V) | 7.5 |
| Minimum Under Voltage Lock Out (V) | 6.5 |
| Typical Under Voltage Lock Out (V) | 7 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
