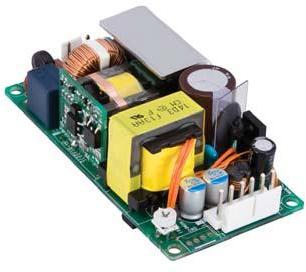

AC to DC Power Supplies MVAB120-28
Murata
MVAB120-28
--
Power Supplies
AC to DC Power Supplies
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Switching |
| Style | Open Frame |
| EU RoHS | Compliant with Exemption |
| Medical | Yes |
| Mounting | Screw |
| ECCN (US) | EAR99 |
| Pin Count | 9 |
| Automotive | No |
| Output Type | Fixed |
| PCB changed | 9 |
| Part Status | Obsolete |
| Configurable | No |
| Package Width | 50.8 |
| Tolerance (%) | ±0.5 |
| Efficiency (%) | 90(Typ) |
| Package Length | 101.6 |
| Ripple & Noise | 1%(Max) |
| Line Regulation | 2% |
| Load Regulation | 2% |
| Power Indicator | No |
| Output Power (W) | 75 |
| Input/Output Type | AC/DC |
| Number of Outputs | 1 |
| Output Current (A) | 4.29 |
| Output Voltage (V) | 28 |
| Product Weight (g) | 162 |
| Input Connector Type | Pin Terminal Block |
| Input Frequency (Hz) | 47 to 63 |
| Output Connector Type | Pin Terminal Block |
| Maximum Input Current (A) | 1.9 |
| Minimum Isolation Voltage | 3000VAC |
| Maximum AC Input Voltage (V) | 264 |
| Maximum DC Input Voltage (V) | 300 |
| Minimum AC Input Voltage (V) | 90 |
| Minimum DC Input Voltage (V) | 120 |
| Typical AC Input Voltage (V) | 120|230 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -10 |
| Description |
