Silicon Controlled Rectifiers - SCRs MCR8DCNT4G
onsemi

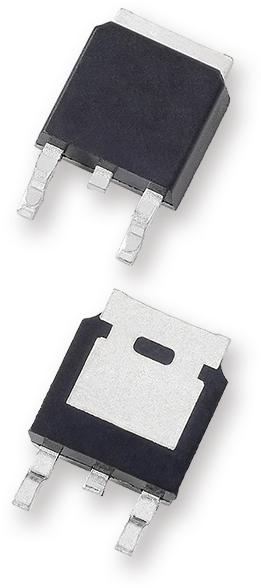

MCR8DCNT4G
--
Diodes, Transistors and Thyristors
Silicon Controlled Rectifiers - SCRs
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Pin Count | 3 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 2 |
| Part Status | Active |
| Package Width | 5.7(Max) |
| Phase Control | No |
| Package Height | 2.4(Max) |
| Package Length | 6.6(Max) |
| Supplier Package | DPAK |
| Standard Package Name | TO-252 |
| RMS On-State Current (A) | 8 |
| Surge Current Rating (A) | 80 |
| Peak On-State Voltage (V) | 1.8@16A |
| Maximum Holding Current (mA) | 30 |
| Maximum Latching Current (mA) | 30 |
| Peak Gate Power Dissipation (W) | 5 |
| Maximum Gate Trigger Voltage (V) | 1 |
| Maximum Gate Trigger Current (mA) | 15 |
| Average Gate Power Dissipation (W) | 0.5 |
| Rated Average On-State Current (A) | 5.1 |
| Circuit Fusing Consideration (A²S) | 26 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Repetitive Peak Reverse Voltage (V) | 800 |
| Repetitive Peak Off-State Current (mA) | 0.01 |
| Repetitive Peak Forward Blocking Voltage (V) | 800 |
| Maximum Rate of Rise of On-State Current (A/us) | 50 |
| Maximum Rate of Rise of Off-State Voltage (V/us) | 200(Typ) |
| Description |
