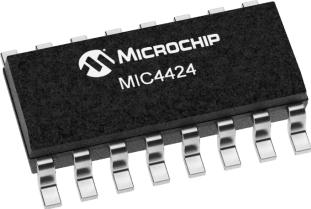

Gate and Power Drivers MIC4424YWM
Microchip Technology
MIC4424YWM
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| Type | MOSFET |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Driver Type | Low Side |
| PCB changed | 16 |
| Part Status | Active |
| Package Width | 7.52 |
| Latch-Up Proof | Yes |
| Package Height | 2.26 |
| Package Length | 10.34 |
| Supplier Package | SOIC W |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Process Technology | Bipolar|CMOS|DMOS |
| Driver Configuration | Non-Inverting |
| Standard Package Name | SO |
| Maximum Fall Time (ns) | 35 |
| Maximum Rise Time (ns) | 35 |
| Output Resistance (Ohm) | 3.5|2.8 |
| Peak Output Current (A) | 3(Typ) |
| Input Logic Compatibility | CMOS|TTL |
| Maximum Supply Current (mA) | 2.5 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 75 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 18 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Input Low Threshold Voltage (V) | 0.8(Max) |
| Typical Input High Threshold Voltage (V) | 2.4(Min) |
| Description |
